The best spot for a bathroom is sometimes the worst spot for plumbing, or gravity. But thanks to the Protege’s wide range of macerator pumps this isn’t a problem. You can save a significant amount of expense by connecting a small diameter pipe to an existing system; making it ideal for adding a bathroom or en-suite to basements, garage conversions, granny flats, workshops and rooms with concrete slab floors.

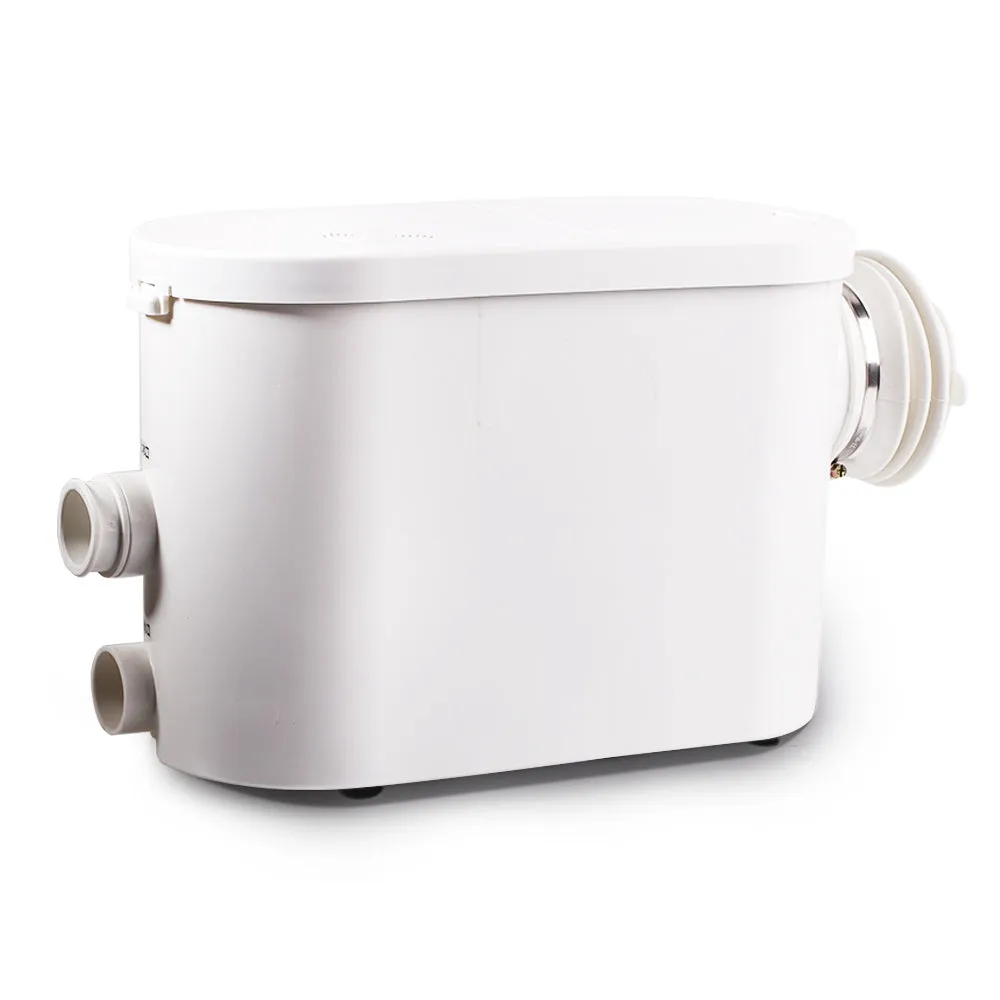

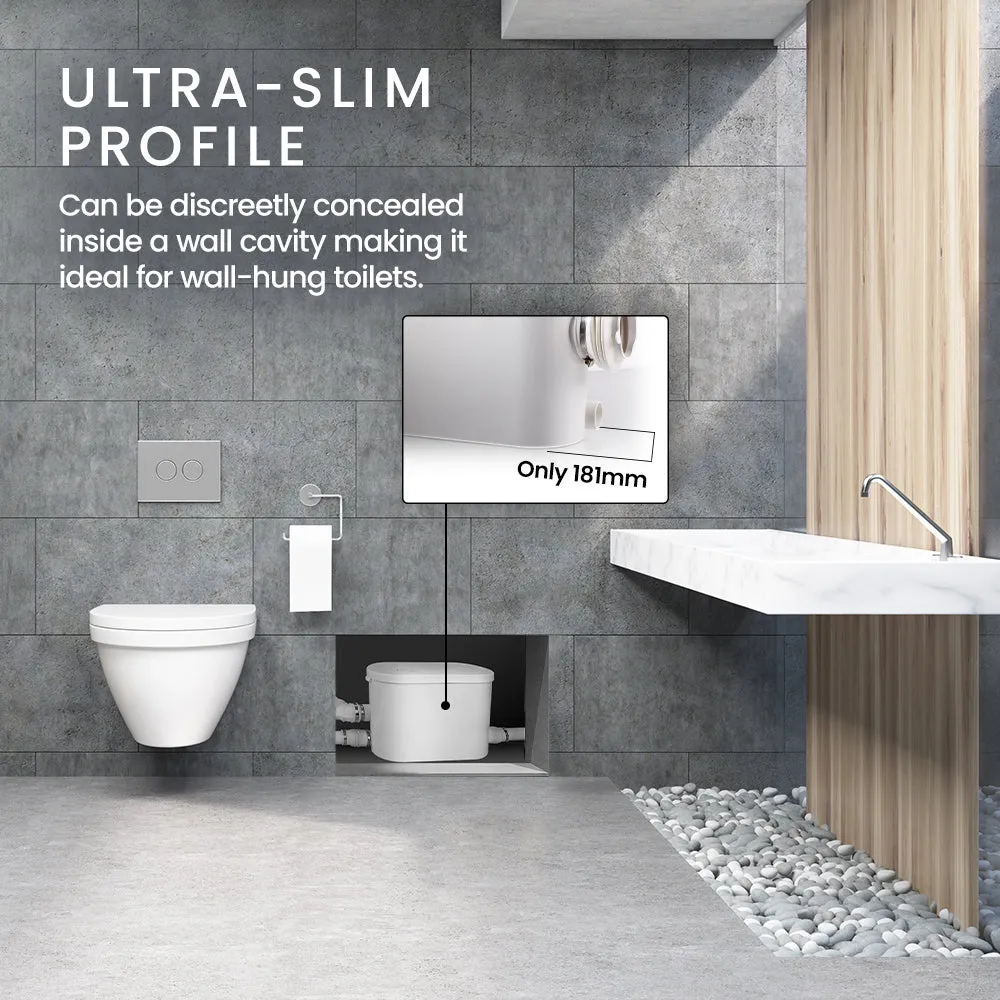

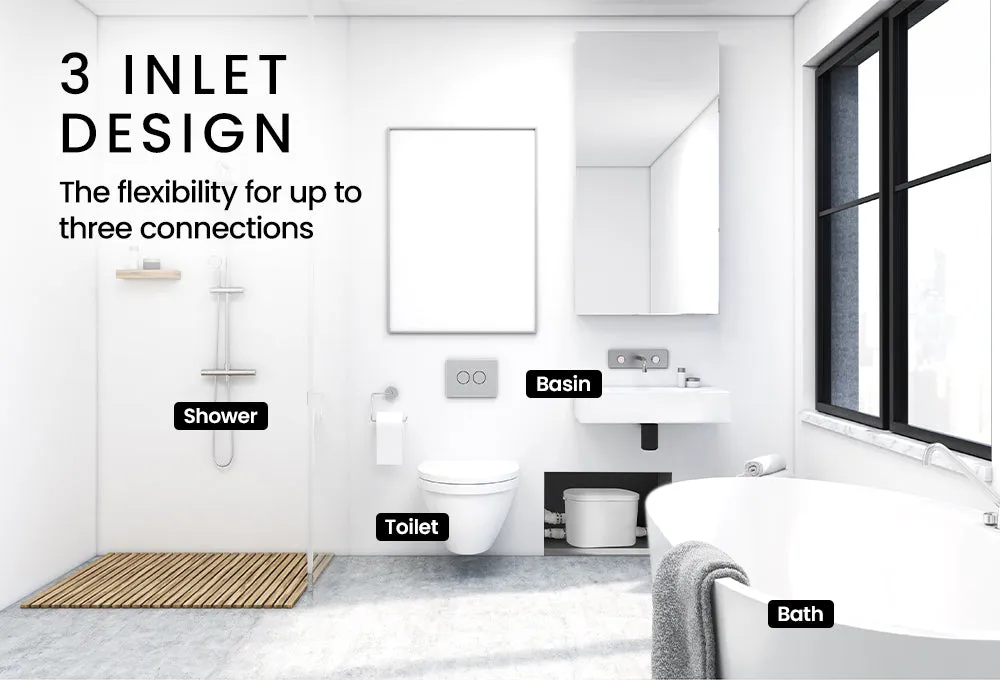

The ultra-slim Protege Washlink 3 Concealed is ultra-slim with a depth of only 180mm. It is designed for wall-hung toilets and can connect with up to 3 sanitary fixtures, such as a basin, shower, bath, bidet or washing machine.

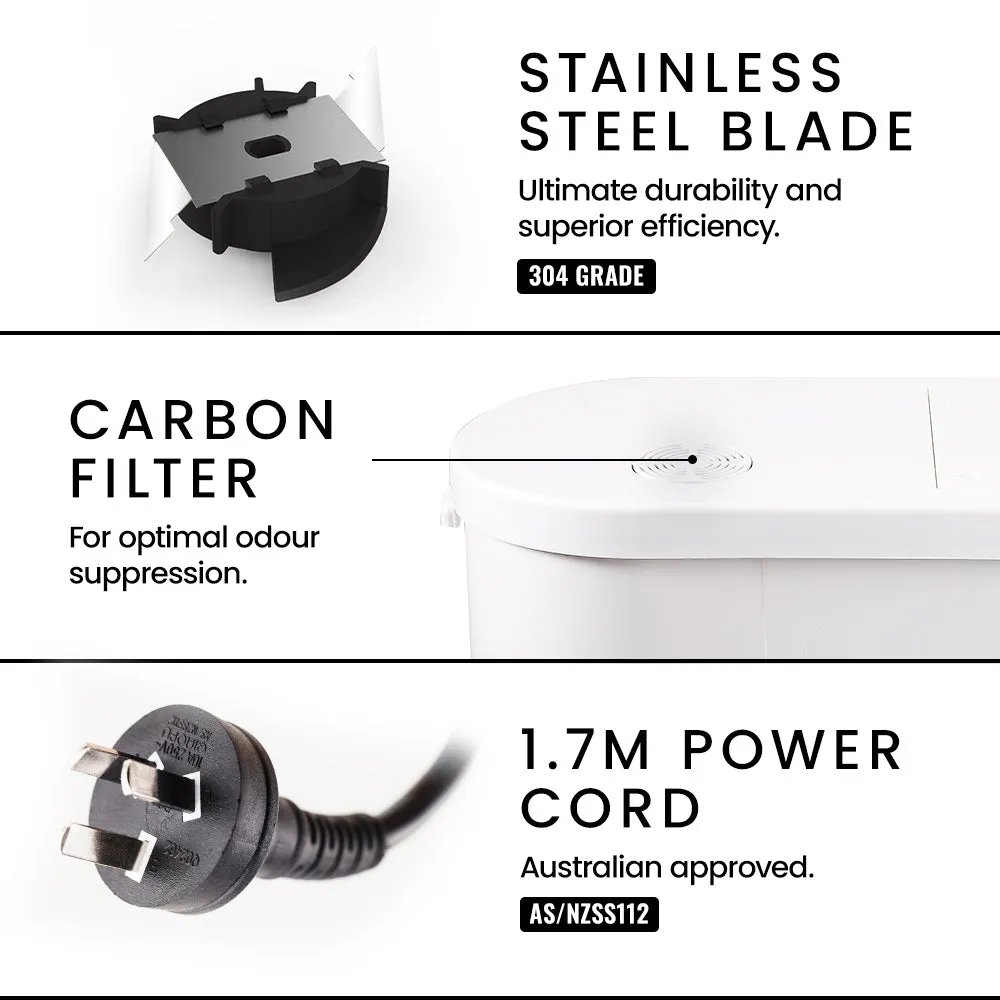

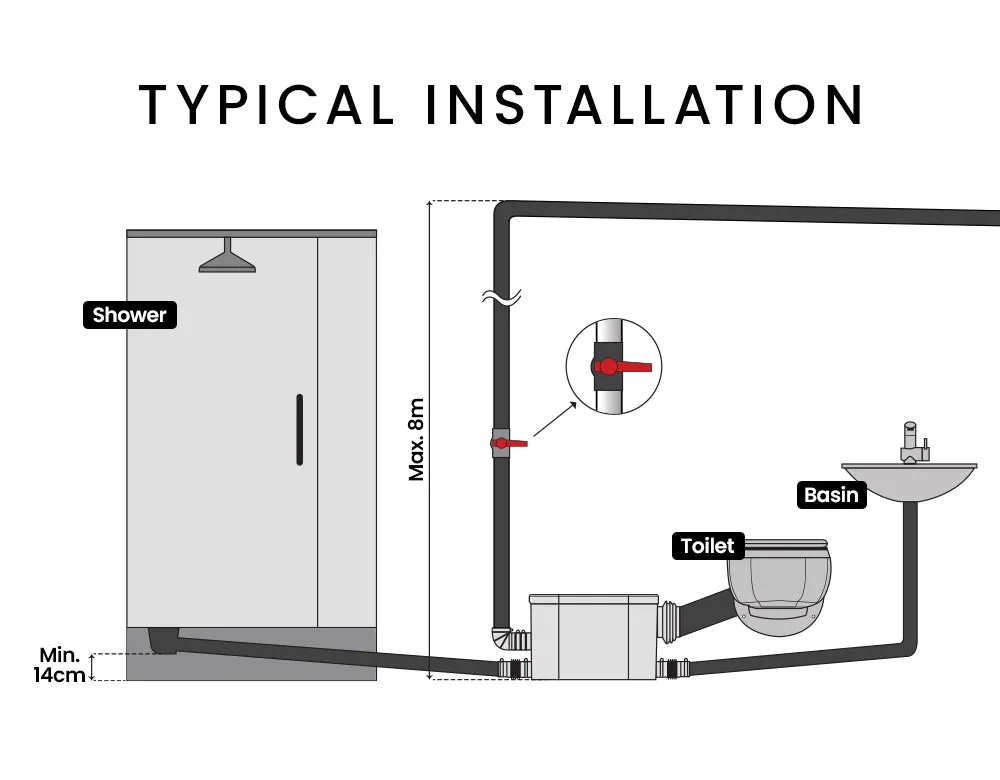

The Washlink 3 Concealed run quietly thanks to the smooth 400W copper wound motor and rubber feet. Specially moulded non-clog 304 grade stainless-steel impeller blades make short work of all waste. It is capable of pumping up to eight metres vertically and 80 metres horizontally.

Connecting the Protege Macerator Pump is straightforward with quality instructions and all necessary fittings included. And, best of all, once in place, you can forget about it. Not only is it quiet; it's automatically activated, too.

Specification

• Brand: Protege
• Model: Washlink 3 Concealed
• Application: Domestic
• Rated Voltage: 220-240V, 50Hz
• Power: 400W
• Motor: Copper Wound
• Noise level (dB): 35-50
• Inlets: 3 (1x Toilet ⌀100mm, 2x ⌀40mm)
• Tank Capacity: 14L
• Vertical Pumping (Max): 8m
• Horizontal Pumping (Max): 80m
• Rated Flow: 145L/min
• Blade: 304 Stainless Steel
• Non Return Valve: Yes
• Water Start Level: 8.5 - 9.5cm
• Power Cord Length: 1.7m
• Power Plug: Australian Standard

IN THE BOX

• 1 x Protege Macerator
• 1 x Universal toilet inlet hose fitting and ⌀90-100mm hose clamp
• 2 x Sanitary device inlet hoses
• 2 x Inlet blanking plug caps
• 7 x ⌀32-50mm Inlet hose clamps
• 2 x Foot brackets and screws
• 2 x Rubber feet
• User Manual is accessible online

SIZE WEIGHT

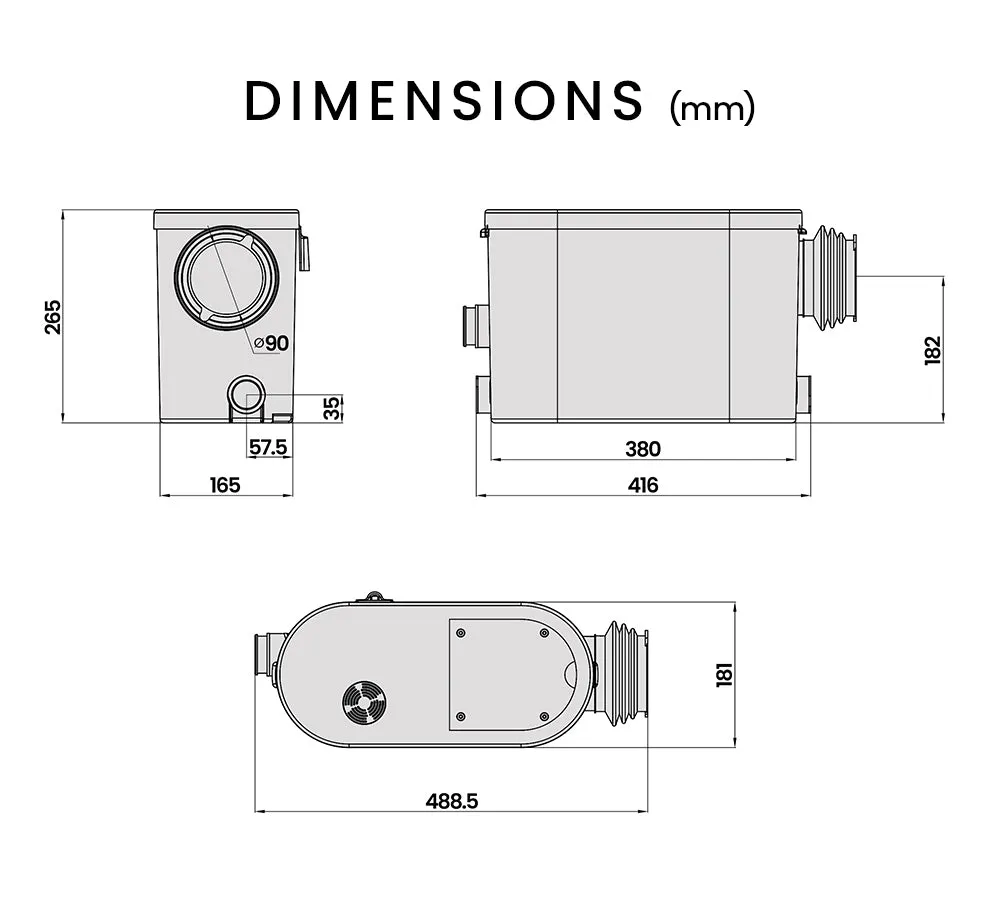

• Product Dimensions (W x D x H): 485 x 180 x 266mm
• Product Weight: 7.5kg
• Carton Dimensions (W x D x H): 480 x 260 x 335mm
• Carton Weight: 8.5kg
